Proloader
1.Single-layer payload : 80kg
2.Maximum height limit of workpiece : 100mm
3.Maximum robot load : 12 (on the table) / 20 / 25 / 35 KG

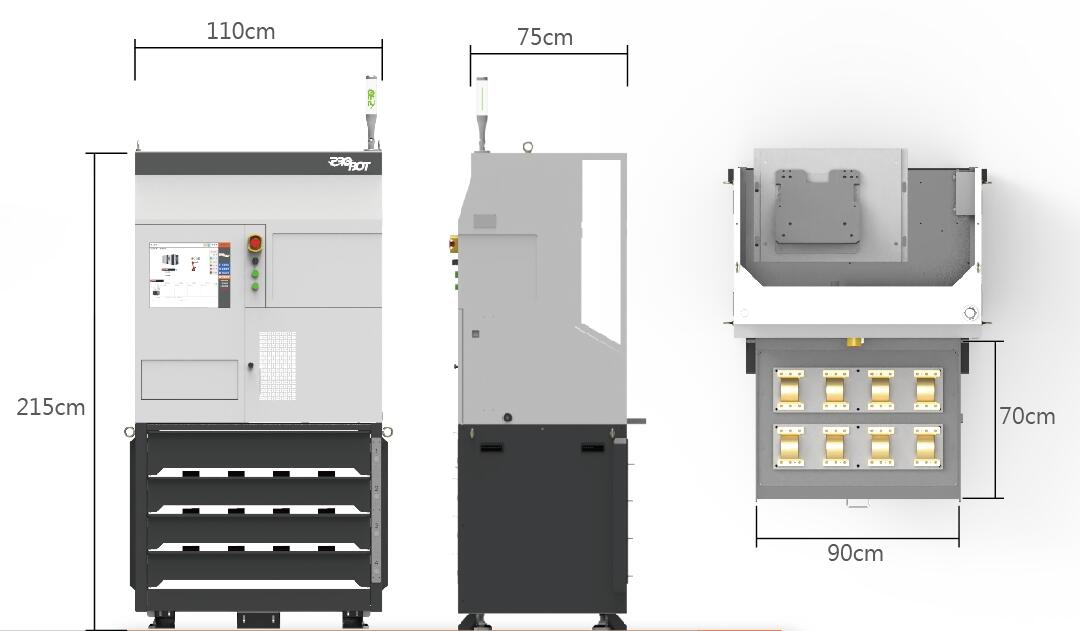

4.Footprint : 2.45 x 3.3 m
Applicable to most robotic arms on the market.
PRO LOAD is a modular and mobile product designed for automation with any desired lathe or milling machine. It adopts a drawer-type storage method to accommodate various types of workpieces. The drawer's internal panels allow for diverse workpiece storage, and with a customized positioning design, it can be flexibly used with the robotic arm and operated by personnel.
PRO LOAD features the advantage of non-stop operation. Operators can replenish materials on the opposite side of the arm without affecting the continuous automated processing, ensuring both automation and worker safety.
Polo’s automation not only streamlines shipping and receiving with lower error rates but also protects your workforce by reducing the hazards of manual heavy lifting and working at heights.
Based in Taiwan, PRO is a professional manufacturer of automated warehouses. Please do not hesitate to contact us for further details.
Space Efficiency: Occupies only 2.45 x 3.3 m, providing high-performance storage within a compact footprint.
High Load Rating: Max. load capacity of 80 kg/layer; max. workpiece height of 100 mm.
Modular Flexibility: Utilizes a drawer-style storage system for customizable layouts to fit different part sizes within an automated warehouse.
Cost Optimization: Automates repetitive manual labor to improve overall operational cost-effectiveness.
